Fans, Lights and Outlets on a Patio Cover: Plan the Wiring First

Written October 8, 2026. Building department pages, city codes and manufacturer documents were read on October 8, 2026.

Key Takeaways:
Pick the fan, light, outlet and switch locations before the cover is ordered. On an insulated cover, the beam a fan hangs from is installed in the roof panel at the factory.
The manufacturer's code report allows for one ceiling fan per 4-foot-wide insulated panel, with a fan weight of 50 pounds at most.
Rain passes through a lattice cover, so a fan under lattice needs a wet rating. Under a solid or insulated roof, a fan maker's own definition calls for a damp rating.
The City of Las Vegas says an electrical permit is required when electrical work is planned on a patio cover. We handle the entire permit process, structural and electrical.
ENERGY STAR sizes a fan by floor area: 225 to 400 square feet calls for a 50 to 54 inch fan.

Why plan the wiring before the cover is built?

Because on an insulated cover the wire path and the fan mount are inside the roof panels. Our insulated panels have hollow channels that let the wiring run concealed inside the cover, with no exposed conduit, no surface-mounted wiring and no visible junction boxes. Four Seasons Building Products, the maker, describes its panels as "available with electrical raceways."

The fan mount is the part that cannot be an afterthought. The code report for Four Seasons insulated roof panels, ICC-ES report ESR-2229, describes an optional aluminum channel beam, a 1-by-3-inch tube that is "factory-installed parallel to the length of the panel and centered on the panel width." That is the fan beam. A panel arrives with it or without it.

Other covers are more forgiving. Alumawood says the internal beam on its solid panel covers can be pre-wired during construction or retrofitted later. Even so, a wire that goes in while the cover is being built is hidden, and a wire added afterward has to find a path.

Our cost factors post says the same thing from the pricing side: electrical work is easier to price and to install cleanly when it is planned before the material is ordered.

Where can a fan hang on each kind of cover?

On an insulated cover, in the middle of a 4-foot panel that was ordered with a fan beam. On solid and lattice covers the mounting is different and the choices are narrower. Here is what our site and the manufacturers' own documents say.

CoverWhat our site saysWhat the manufacturer says

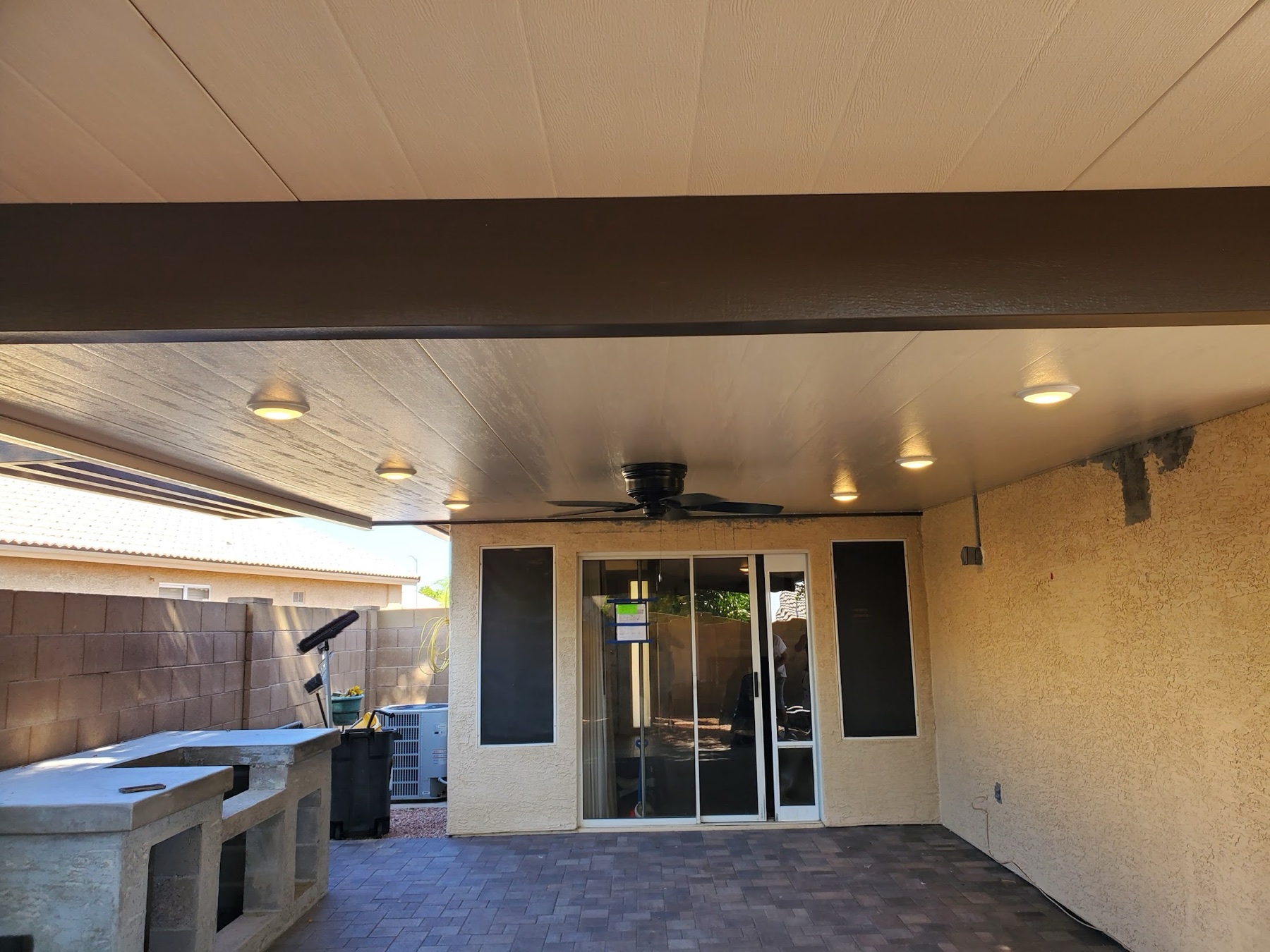

InsulatedBuilt-in electrical raceways for ceiling fans, recessed lighting and outlets. The wiring runs inside the panel.Four Seasons: fans or other light fixtures "can be installed on the ceiling side" of its insulated roof panels. Its code report allows for one ceiling fan per 4-foot-wide panel, 50 pounds at most.

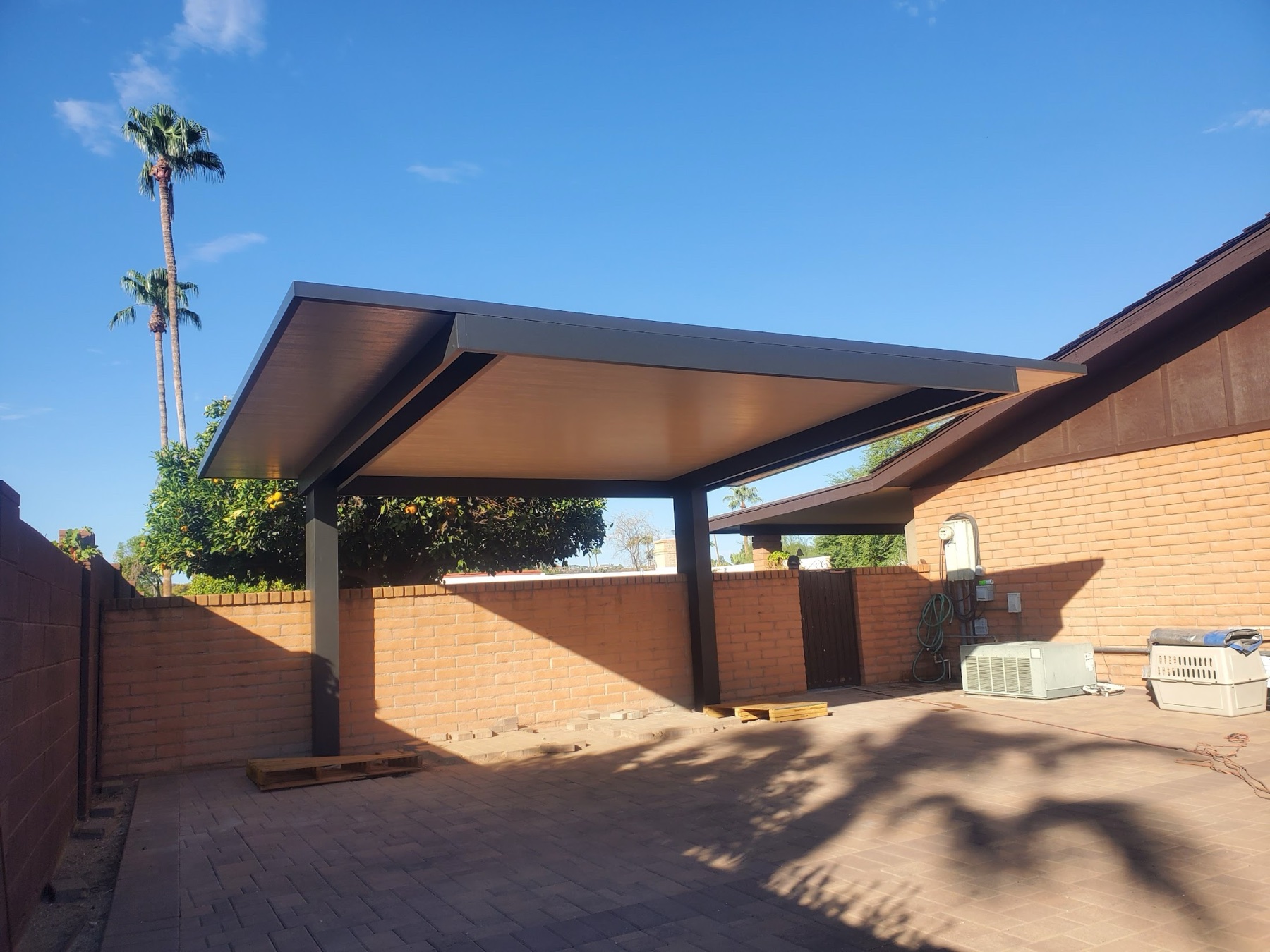

Solid, not insulatedStandard solid panels "can also accommodate electrical, but the installation method is different."Alumawood lists ceiling fans and lights among the options for its solid panel covers, with an internal beam whose channels protect the wires. The Four Seasons code report for its covers lists a "Fan Beam Details" sheet.

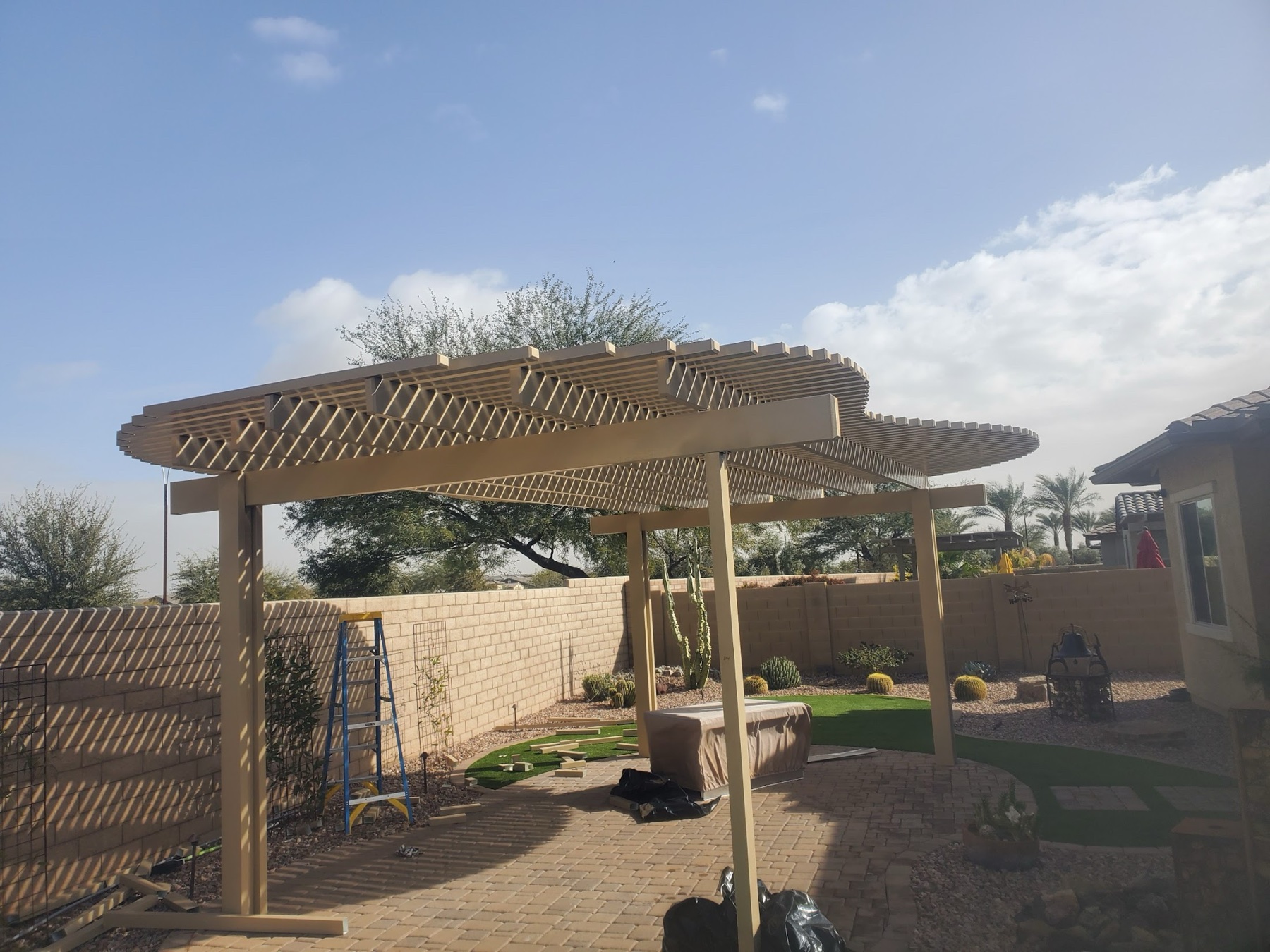

Lattice"Lattice has limited electrical options." Fans and lighting need "appropriate mounting."Alumawood lists ceiling fans and lights among the options for its lattice covers, with one internal beam to run cables on the inside.

The panel rule shapes the layout. Insulated panels are 4 feet wide, and their length runs with the roof slope, from the house out. A 20-foot-wide cover is five panels, so it has five possible fan lines, each in the middle of its panel. The report's load tables allow for one fan per panel, not two.

A freestanding cover can have power too. Our site says electrical can be routed to it through underground conduit. That trench crosses whatever lies between the house and the cover, so settle it before pavers or concrete go down.

How big a fan, and how high?

Size the fan to the floor area under the cover, and keep it at least 7 feet above the slab. ENERGY STAR's sizing table, which it credits to the American Lighting Association, is written for rooms. It is the rule we would start from for the floor under a cover.

Area under the coverSuggested fan size
Up to 75 square feet29 to 36 inches
76 to 144 square feet36 to 42 inches
144 to 225 square feet44 inches
225 to 400 square feet50 to 54 inches

The table stops at 400 square feet and 54 inches. A cover bigger than that, say 12 by 36 feet, is a two-fan plan, with one fan over each place people sit.

For height, ENERGY STAR says to mount a fan at least 7 feet above the floor and 18 inches from the walls, and 8 to 9 feet above the floor if the ceiling allows. It says low-profile "hugger" fans are ideal where the ceiling is under 8 feet. A patio cover slopes down away from the house, so measure the height where the fan will hang, not at the wall. Subtract the hanging length of the fan you like. If less than 7 feet is left, choose a hugger fan or move the fan toward the house. The regional standard drawing that southern Nevada building departments publish for patio covers shows a minimum height of 6 feet 8 inches at the front beam, so the low side of a cover can meet that minimum and still be too low for a fan.

Weight counts too. ENERGY STAR notes that ceiling fans can weigh as much as 50 pounds, which is also the limit in the panel report. Check the weight on the spec sheet before you buy.

A fan moves air across you. It does not cool the air. ENERGY STAR's line is "Ceiling fans cool people, not rooms." Our heat guide has the numbers on what shade and moving air can and cannot do here.

Does a patio fan need a damp rating or a wet rating?

It depends on whether rain can reach it. Hunter, a fan maker, defines a damp-rated fan as one "designed for covered outdoor areas where moisture is present, but the fan is protected from direct exposure to water." It defines a wet-rated fan as one built for spaces where it "may come into direct contact with water, including rain." It adds that pergolas "still allow rain and moisture through" and "require wet-rated fans."

Apply that to the three covers. A lattice cover does not block rain, so a fan or light under it should be wet-rated. A solid or insulated cover is a roof, which fits the damp definition. ENERGY STAR is stricter: for fans that may come in direct contact with water, "like on a patio or front porch," it says to look for a UL wet rating. Summer storms here blow rain sideways, so for a fan or light near the open edge of a cover, wet-rated is the safer pick. On our insulated covers we install fans rated for damp/outdoor locations.

Lights get the same question. The City of Las Vegas handout on patio cover electrical says a light fixture "may have to be listed for 'Wet' or 'Damp' installation."

What about outlets?

Outdoor outlets get GFCI protection. The City of Las Vegas handout lists "GFCI required for outdoor installations" among the things an electrical plan must show. The U.S. Consumer Product Safety Commission says the National Electrical Code has required GFCI protection for outdoor receptacles since 1973. A GFCI shuts off power when the current going out and the current coming back differ by as little as 0.006 amperes. The commission says to test every GFCI at least once a month.

On our covers, outlets are integrated into the post or beam structure. Think about what will plug in: speakers, chargers, small appliances, holiday lights, a TV. Each one wants an outlet near it, and the time to place it is now.

Does the electrical work need its own permit?

In the City of Las Vegas, yes, in so many words. The other three say it more generally. Confirm with your own building department, because these rules change.

  • City of Las Vegas. The Building and Safety handout "Electrical for Patio Covers" opens: "An electrical permit is required when electrical work is being planned on a patio cover." It counts a fan as two devices as a general rule, so two fans are four devices before a single light or outlet is added. Electrical plans and calculations are required whenever six devices are added to an existing circuit. A new dedicated 20-amp circuit to the cover is capped at twelve outlets. Inspectors may also ask for load calculations because of "panel loads and panel space."
  • Clark County. The Building Department's permit page says an owner who intends to "erect, install, enlarge, alter, repair, move, convert or replace any electrical" system "shall first make application to the department and obtain the required permit."
  • Henderson. Municipal Code 15.01.125 requires "the appropriate building, electrical, plumbing, mechanical" or other permit before the work is done.
  • North Las Vegas. Municipal Code 15.72.140 requires "a separate, appropriate permit for each building, structure or building service equipment."

The exemption lists in the Clark County, Henderson and North Las Vegas codes cover small things, such as "temporary decorative lighting" and replacing a light fixture in a single-family home. New household-voltage wiring for a fan, a light or an outlet is not on them. Low-voltage wiring has exemptions of its own in Henderson and North Las Vegas, so ask about low-voltage lighting.

Our site says insulated covers with electrical work also require electrical inspection. We handle the entire permit process, structural and electrical, from application through final inspection, and we coordinate the electrical work during installation so everything is completed as one project. Our permit guide covers the rest.

What does electrical add to the price and the schedule?

It is quoted at your estimate. Electrical work is one of the things the cost of a cover depends on, and a project with fans, lighting or outlets may take slightly longer.

What should I decide before the estimate?

Fill in this list and bring it to the estimate.

  1. Cover size. Width times projection gives the square feet. Read the fan size off the table above.
  2. Fan spots. Sketch the cover in 4-foot strips running out from the house, and mark which strips get a fan.
  3. Height at each fan spot. You need 7 feet under the fan.
  4. Lights. How many recessed lights, and where. We install dimmable LED fixtures, so decide which lights dim together.
  5. Outlets. Where each one goes and what plugs into it.
  6. Switch location. Inside by the patio door or outside on the wall, and whether the fan and the lights get separate switches.
  7. Nearest power. Photograph the closest outdoor outlet or light, and your electrical panel with the door open so the breakers and any empty spaces show.
  8. Jurisdiction. City of Las Vegas, Henderson, North Las Vegas or unincorporated Clark County.

Frequently asked questions

Can I add a ceiling fan and lights to a patio cover?

Yes. City Seamless Patio Covers installs ceiling fans, recessed lighting and electrical outlets as part of the patio cover project. Insulated panels have built-in electrical raceways, and solid and lattice covers can also accommodate fans and lighting with appropriate mounting.

Where can a ceiling fan go on an insulated patio cover?

On a panel ordered with a fan beam. The manufacturer's code report describes the beam as factory-installed and centered on the 4-foot panel width, and it allows for one ceiling fan per panel with a fan weight of 50 pounds at most.

Do I need a damp-rated or wet-rated fan under a patio cover?

Under a lattice cover, wet-rated, because rain passes through lattice. Under a solid or insulated roof a damp rating fits a fan maker's definition, but ENERGY STAR says to look for a UL wet rating for fans that may come in direct contact with water.

Do I need an electrical permit to add a fan to a patio cover in Las Vegas?

The City of Las Vegas says an electrical permit is required when electrical work is being planned on a patio cover. Clark County, Henderson and North Las Vegas require permits for electrical work in their codes. Confirm with your building department.

What size ceiling fan do I need for my patio?

ENERGY STAR suggests 36 to 42 inches for 76 to 144 square feet, 44 inches for 144 to 225 square feet, and 50 to 54 inches for 225 to 400 square feet. Mount it at least 7 feet above the floor.

Can a freestanding patio cover have fans and lights?

Yes. Electrical can be routed to a freestanding cover through underground conduit, and City Seamless coordinates the electrical as part of the project.
